MPS system Ltd.

Since 1992 MPS system Ltd. Is bringing new, innovative and unique solutions and has been developing, producing , delivering and installing:

  • Sensors and measurement systems for meteorology, hydrology and environment monitoring
  • Applications in meteorological and hydrological services, aviation, traffic, agriculture
  • Software for data acquisition, processing, presentation and distribution

System philosophy

Product's portfolio

Sensors

Sunshine Duration Sensor SD-9

Measurement of sunshine state, one-minute sunshine duration, ten-minute sunshine duration.

Parameters

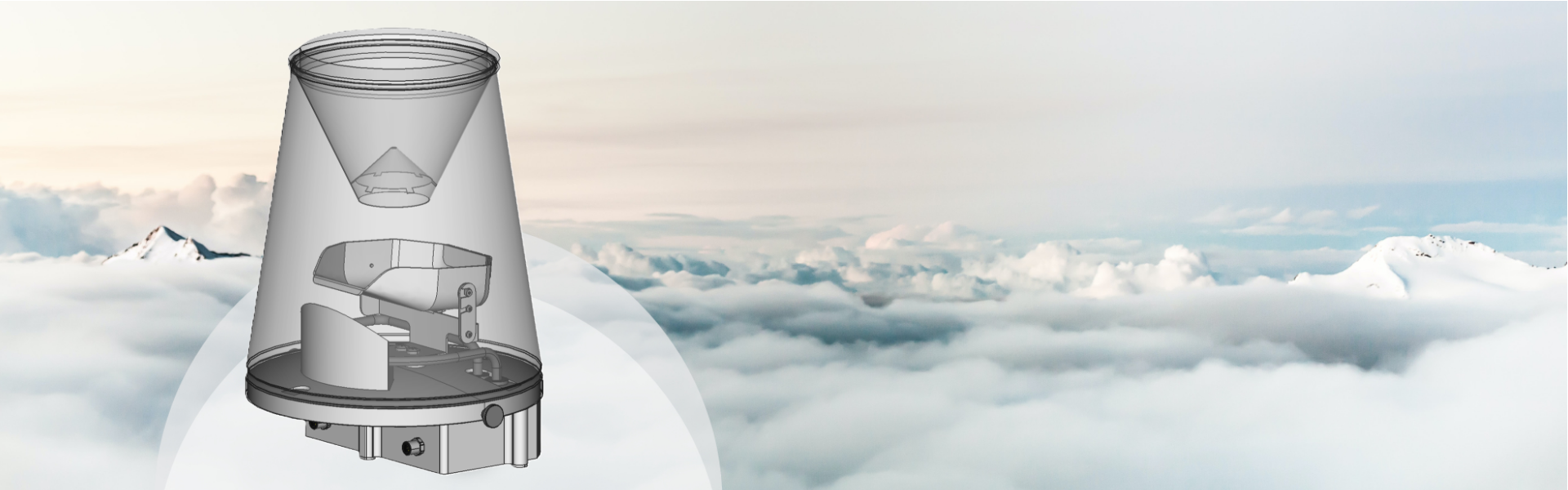

Total Rain Weighing Sensor TRwS4E15

The world ´s most innovative TOTAL RAIN weight sensor with
unique Self-Emptying System

Parameters
Total Rain Weighing Sensor

The excellent tool to measure all types of precipitation within wide temperature range, harsh wind and snow conditions.

Parameters
Digital Meteo Sensor

Measuring of ambient air temperature, relative humidity, water temperature, soil temperature, atmospheric pressure.

Parameters
Rain Quantity Analyzer

Measurements of relative intensity of precipitation, present liquid or solid precipitation.

Parameters

Loggers

MPS09 Datalogger

Compact multi-purpose datalogger with built-in GPRS modem for IoT communication.

Parameters

All in One

All in One solutions

represents complete new design compact and independent hydro meteorological One Purpose station.

Parameters
Specification
Measurement
Measuring element semiconductor diodes
Measured values Instant sunshine state, duration
Spectral bandwidth 430..1100nm
Treshold value 120W/m²
Viewing angle 270°
Duration resolution 1 second
Accuracy >95% (monthly sunshine hours)
Non-stability <2% change per year
Electrical & Interface
Power supply 6..24VDC
Power consumption max. 7mA
Heating supply max. 24V / R=47Ω
Heating consumption 0.26A @ 12V
RS485 9600bps, 8N1
Contact output Umax=30V, Imax=300mA
Mechanical
Dimensions Ø87×82mm
Weight 0.6kg
Length of terminal cable 3m
Environmental
Operating temperature range -40..+70°C
Operating humidity range 0..100%
Storage temperature range -50..+85°C
Degree of protection IP65
Data sheets
SD-9 Datasheet

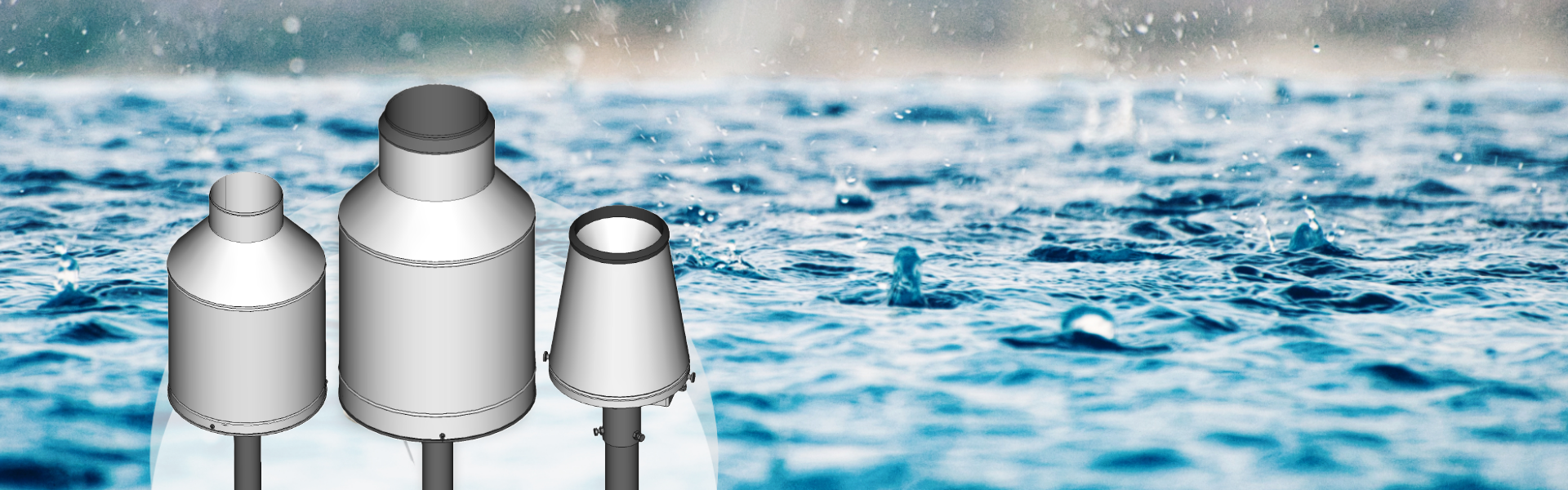

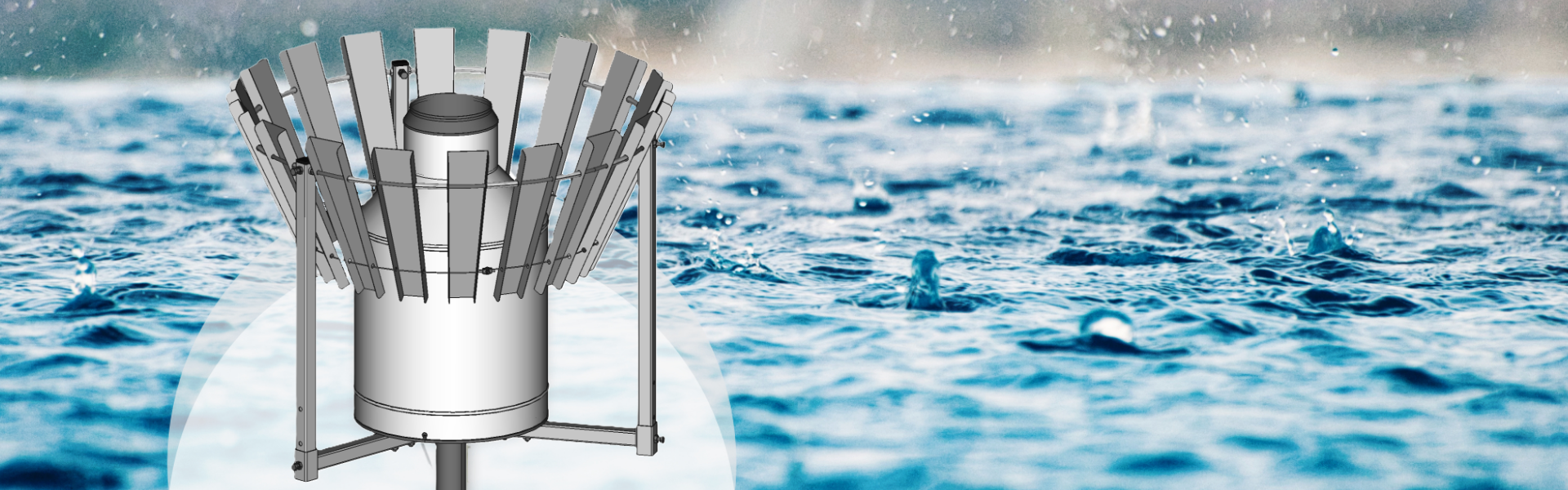

Total Rain Weighing Sensor TRwS

with its original mechanical and electronic design is an excellent tool to measure all types of precipitation within wide temperature range, harsh wind and snow conditions. TRwS is most sensitive and very accurate rain gauge. Simple mechanical construction together with very sophisticated firmware can guarantee perfect performance. TRwS is available with apertures of 200cm², 400cm² and 500cm².

Specification
  TRwS214 TRwS514 TRwS215 TRwS415
Measurement
Orifice area 200cm2 500cm2 200cm2 400cm2
Range of precipitation 750mm 250mm 1500mm 750mm
Accuracy of amount 0.025mm 0.01mm 0.025mm 0.0125mm
Accuracy of intesity 0.025mm/min 0.01mm/min 0.025mm/min 0.0125mm/min
Accuracy 0.1%
Maximum rain intensity 120mm/min
Resolution 0.001mm
Measuring element strain-gauge bridge
Air temperature measurement optional, -40..+70(±0.5)°C
Wind speed estimation optional
Wind correction yes
Wind shield yes
Electrical & Interface
Power supply 5..30VDC/4mA max
Heating supply 10..30VDC/0.83..2.5A
Output contact
(1 or 0.1 or 0.01mm)
Umax=30V, Imax=300mA
Serial output RS-485/SDI-12
Mechanical
Dimensions Ø360×540mm Ø360×380mm Ø385×650mm Ø385×610mm
Weight 8.0kg 9.5kg
Environmental
Operating temperature range -40..+70°C
Operating humidity range 0..100%
Degree of protection IP65
Specification
  Probe type
Ta Tws P-TRh
TA TW/TS PA* TA RH
Range -35..+70°C 500 .. 1100hPa -35..+70°C 0..100%
Accuracy ±0.25°C ±0.5°C ±1.5hPa ±1.8%
(10..90%)
Resolution 0.01°C 2Pa 0.01°C 0.1%
Power supply 5..24VDC / 0.7mA@12V
Interface RS-485/SDI-12
Dimensions Ø20×80mm Ø20×90mm Ø25×80mm
Weight cca 60g
Degree of protection IP66 IP68 IP64
Data sheets
Digital meteo sensors
Specification
Measurement
Measuring element capacitance transducter Ø70mm
Electrical & Interface
Power supply 10..30VDC
Power consumption max. 30mA
Heating 8..30V
30Ω/15W
RS485 optically isolated, 9600bps
Logical output electronic relay
Umax=30V, Imax=300mA
Analog output 0..1V
Mechanical
Dimensions Ø80×50mm
Weight 0.35kg
Environmental
Operating temperature range -35..+70°C
Operating humidity range 0..100%
Degree of protection IP66
Data sheets
RQA6 Datasheet
Specification
Measurement
Orifice area 200cm2 • 400 cm2 • 500cm2
Precipitation range unlimited
Accuracy absolute ±0.1%
Maximum rain intensity 120mm/min
Resolution 0.001mm / 0.01mm
Measuring element strain-gauge bridge
Power supply 5÷30VDC
Heating supply 60W
Serial output SDI12 / RS485 / USB / NFC / BT
Dimensions ø227×400mm
Weight 7kg
Operating temperature range -40 ÷ 70°C
Operating humidity range 0÷100%
Degree of protection IP55
Data sheets
RQA6 Datasheet

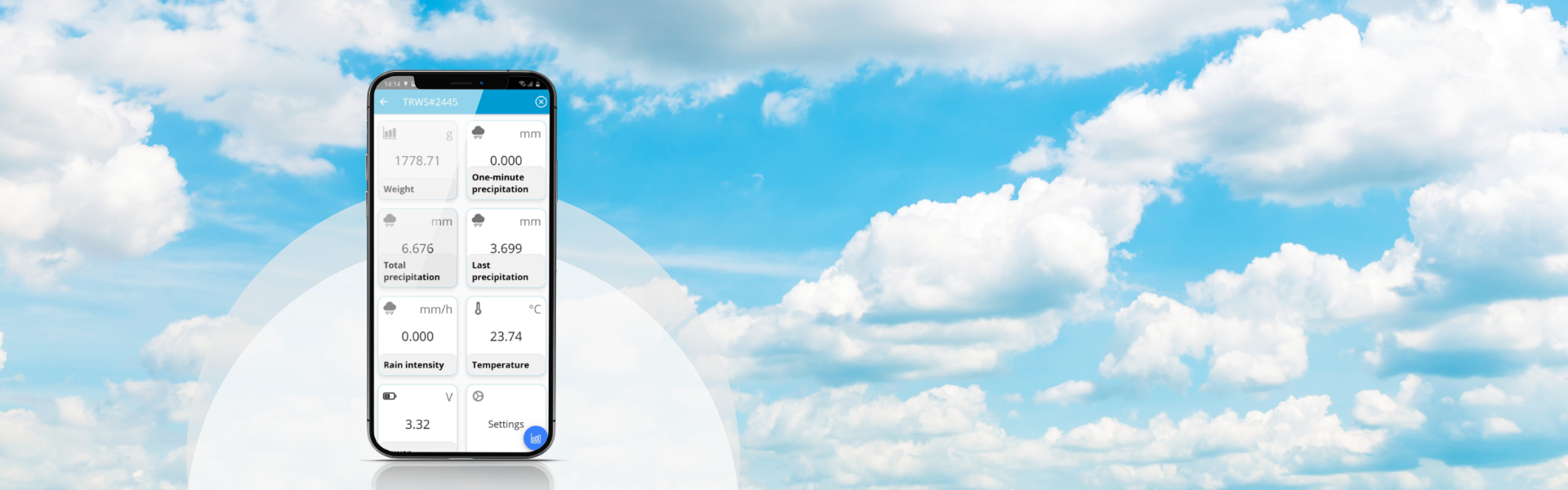

All in One solutions – AiO

Represents complete new design compact and independent hydro meteorological One Purpose station.

Each AiO product is designed with very low power consumption to measure, compute and distribute a few parameters such as water level and temperature, Precipitation, snow height…..

Various mean of communication are available just to plug in certain modem GPRS, MBIOT, LoraWan, Sigfox, BlueTooth..

LIVE graphs - Data visualization
