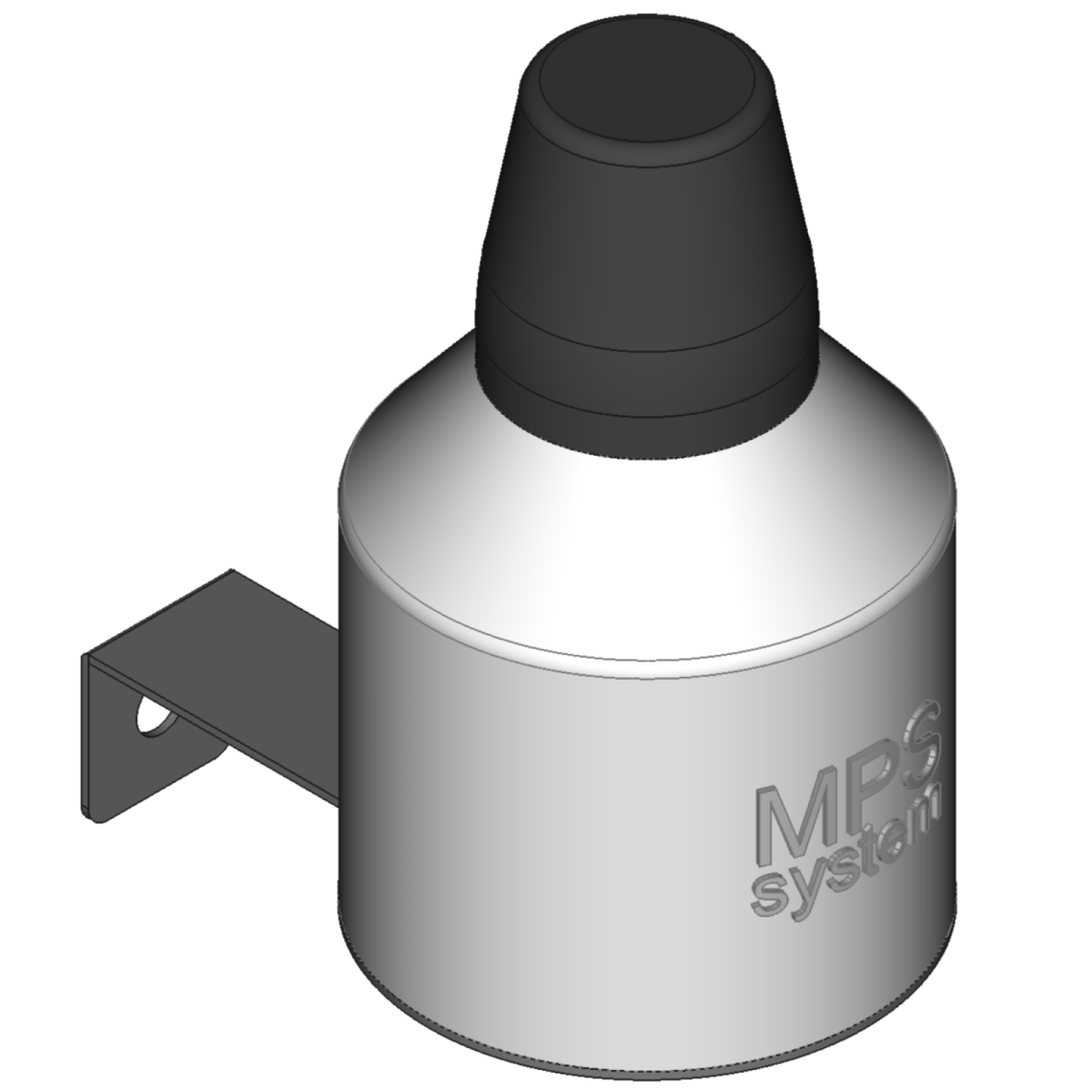

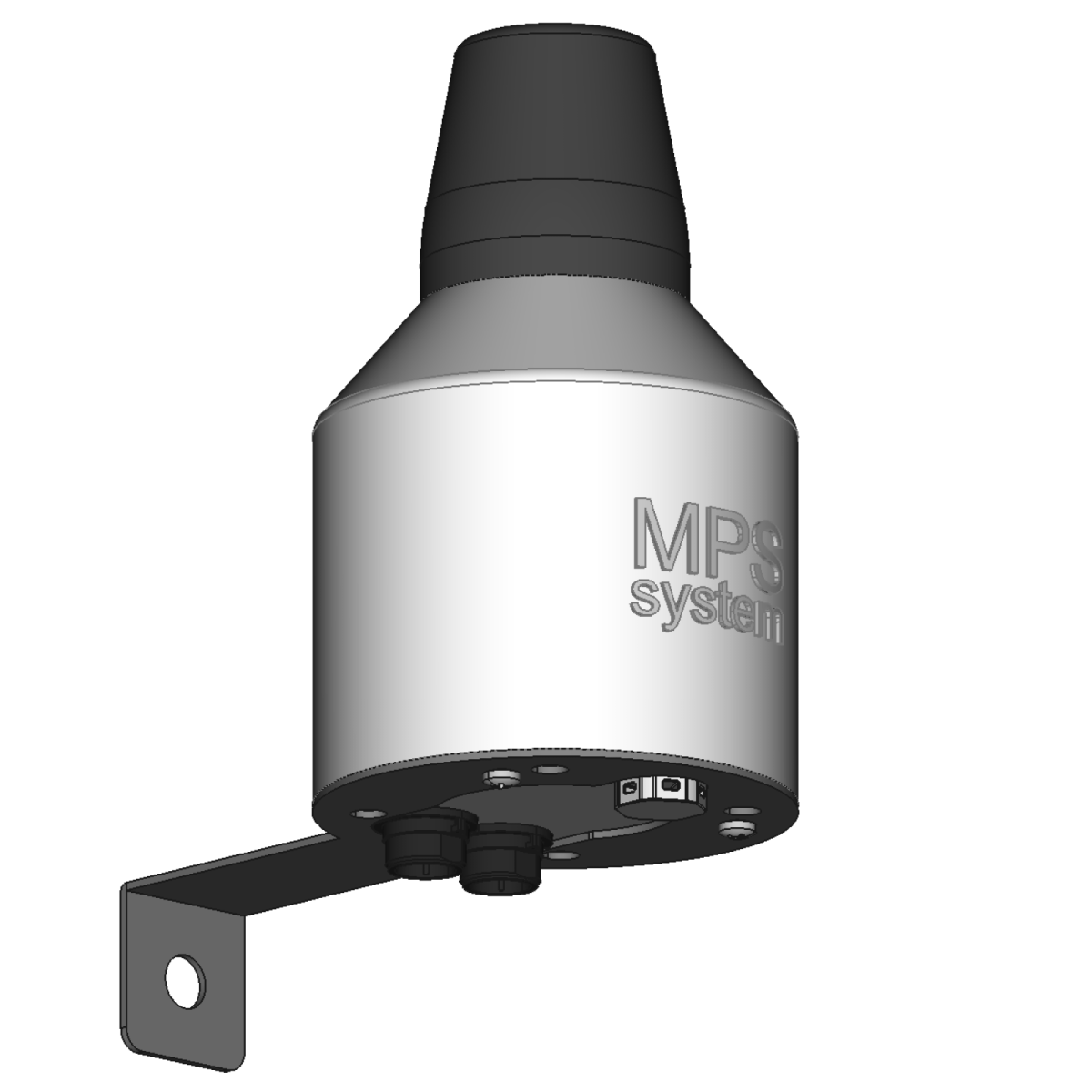

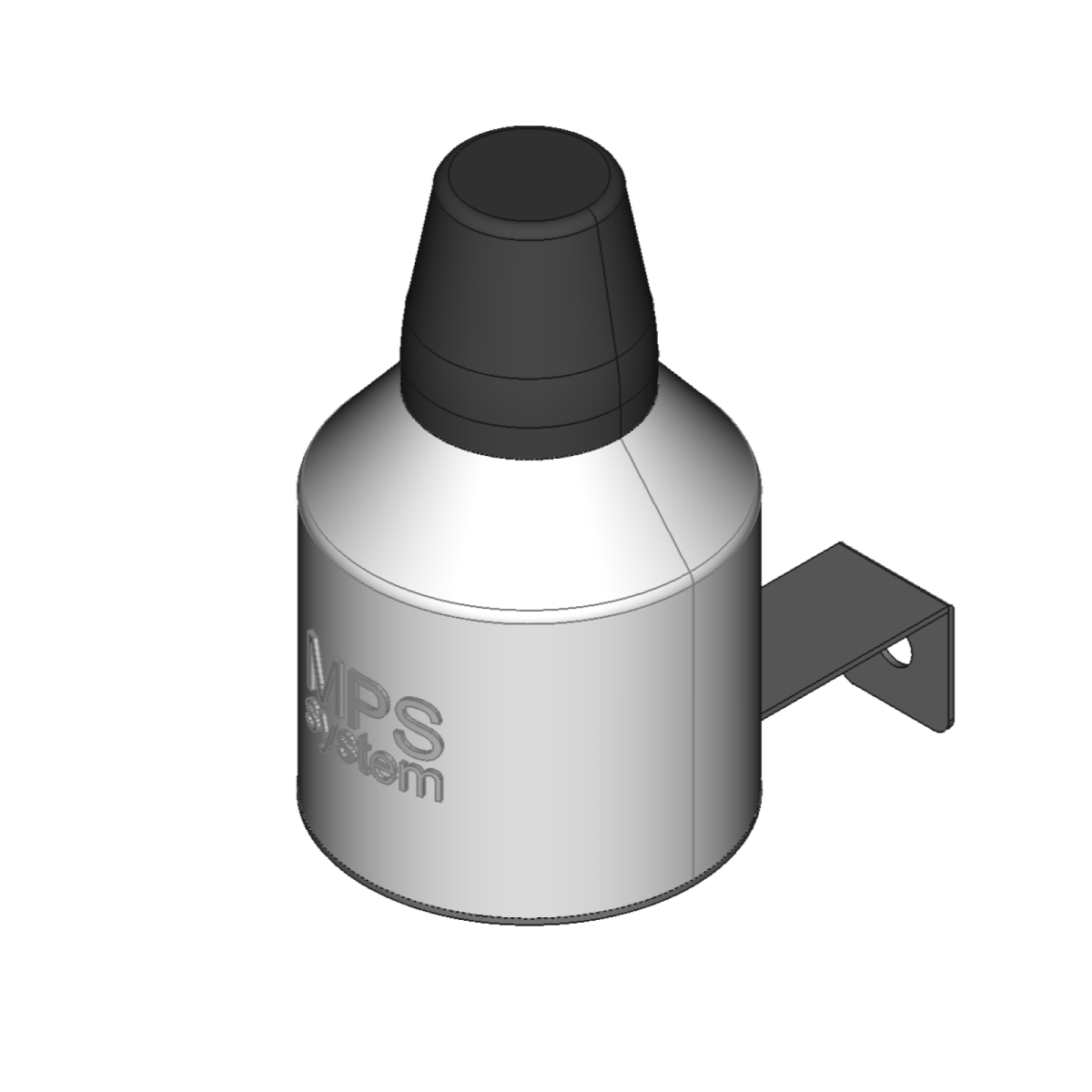

MPS11 datalogger

Multi-purpose datalogger with built-in mobile modem

The MPS11 datalogger is a versatile and reliable device designed for remote data collection from MPS sensors in a variety of environmental applications. Equipped with a built-in mobile modem, the MPS11 datalogger enables data transmission over cellular networks at configurable time intervals, allowing flexible access to measurements and system status. The battery-powered version includes an internal LiSOCl₂ battery. Version with a M13 connector is intended for external power supply (MPS solar pack).

Key features

Integrated GPRS modem
Collect data from connected sensors via Bluetooth
Flexible power management for battery-powered applications
Bluetooth LE for configuration
Configurable alarm notifications
Configurable measurement and transmitting interval
No loss data if power failure

Application

Meteorology & climatology
Hydrology
Flash flood warning systems
Water management
Urban infrastructure
Climate research projects

Specification

TYPE	MPS11 DATALOGGER ULP* (BATT.)
Wired communication	---
Wireless communication	Bluetooth LE
Connector	M13, 3-pin / ---
Battery	No batt. / 19 Ah, LiSOCl2
Power supply	2,2 ÷ 3,9 VDC
Operatng temperature	- 30 ÷ 70 °C
Operatng humidity	0 ÷ 100 %
Protection rating	IP 68
Material	Stainless steel / UV stabilised ABS
Dimensions	Ø 90 × 95 mm
Weight	0.5 kg
